• SQM10.15502 – Actuator, 10Nm, 90°/14 s, 130°/20s, 5 aux switches, start torque 10Nm, AC230V
• SQM10.16502 – Actuator, 10Nm, 90°/29s, 130°/42s, 5 aux switches, start torque 15Nm, AC230V
• SQM10.17502 – Actuator, 10Nm, 90°/70s, 130°/100s, 5 aux switches, start torque 15Nm, AC230V
• SQM20.18502 – Actuator, 20Nm, 90°/45 s, 130°/66s, 5 aux switches, start torque 20Nm, AC230V

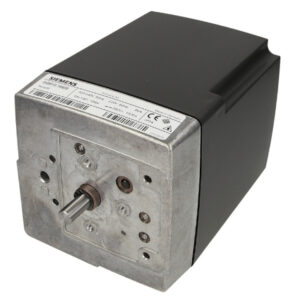

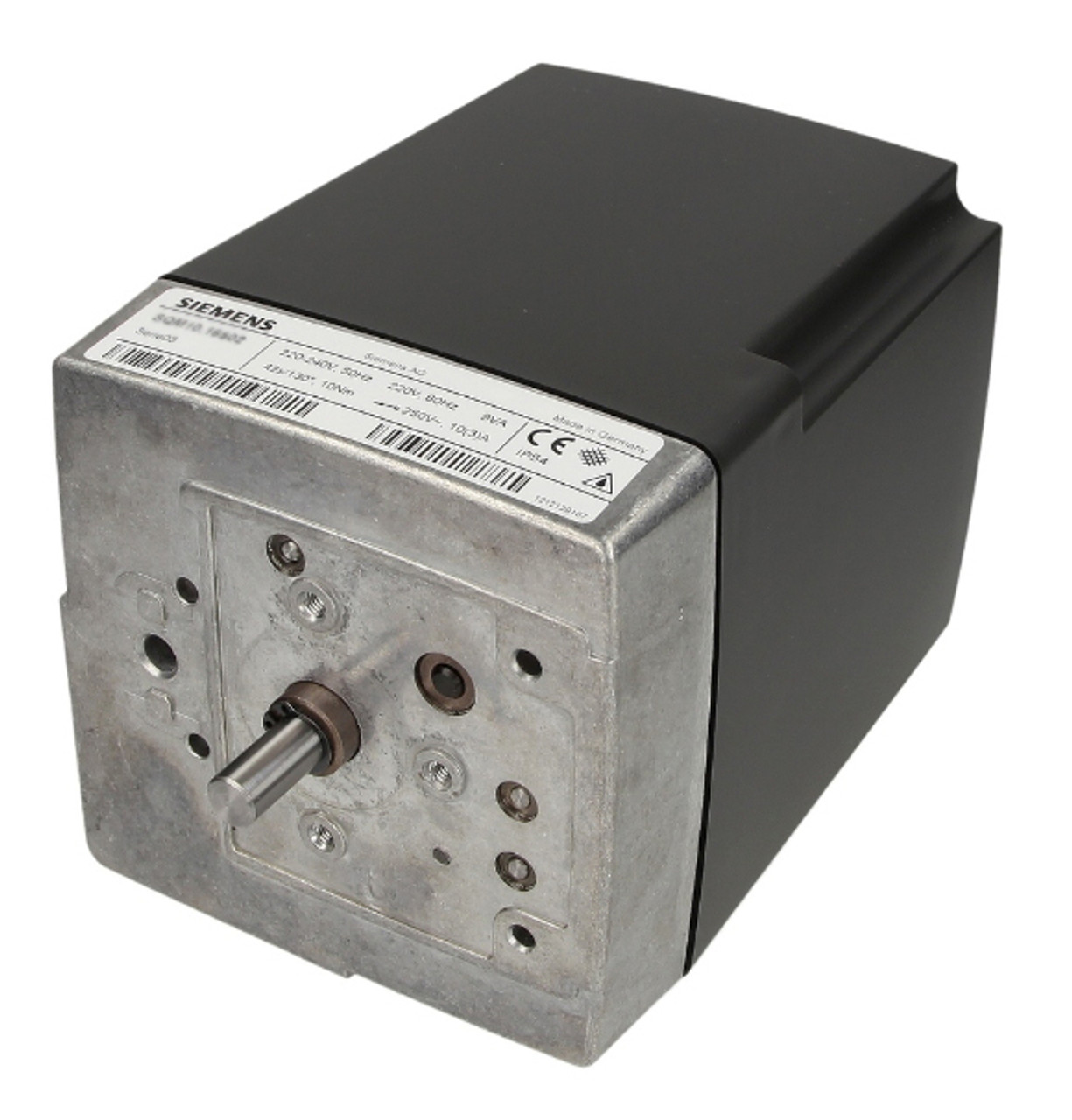

• SQM21.16502 – Actuator, 20Nm, 90°/29s, 130°/42s, 5 aux switches, start torque 20Nm, AC230V
• SQM21.18502 – Actuator, 20Nm, 90°/45s, 130°/66s, 5 aux switches, start torque 20Nm, AC230V
• SQM50.381A2 – Actuator, 10Nm, 90°/15s, 8 switches, shaft 10mm+key, CE, AC230V
• SQM50.454A8 – SQM50.454A8 Actuator
• SQM50.480A1 – SQM50.480A1 Actuator
• SQM50.481A2 – Actuator, 15Nm, 90°/30s, 8 switches, shaft 10mm+key, CE, AC230V
• SQM50.481A2Z3 – Actuator, 15Nm, 90°/30s, 8 switches, shaft 10mm+key, CE, electronic, AC230V
• SQM50.482A2 – Actuator, 15Nm, 90°/30s, 8 switches, shaft 12mm+key, CE, AC230V
• SQM50.681A2 – Actuator, 15Nm, 90°/60s, 8 switches, shaft 10mm+key, CE, AC230V
• SQM54.482A2 – Actuator, 25Nm, 90°/30s, 8 switches, shaft 12mm+key, CE, AC230V
• SQM54.482A203 – Actuator, 25Nm, 90°/30s, 8 switches, shaft 12mm+key, CE, AC230V
• SQM54.482A2Z3 – Actuator, 25Nm, 90°/30s, 8 switches, shaft 12mm+key, CE, electronic, AC230V
• SQM54.487A203 – Actuator, 25Nm, 90°/30s, 8 switches, shaft 14mm+key, CE, AC230V
• SQM56.687A2 – Actuator, 40Nm, 90°/60s, 8 switches, shaft 14mm+key, CE, AC230V
• SQM56.687A203 – Actuator, 40Nm, 90°/60s, 8 switches, shaft 14mm+key, CE, AC230V
• SQM56.687A2Z3 – Actuator, 40Nm, 90°/60s, 8 switches, shaft 14mm+key, CE, electronic, AC230V
• SQM56.687A8 – SQM56.687A8 Actuator
• SQN30.102A2700 – Actuator, 90°/4.5s, 1Nm, 1-wire control, high housing, AC230V
• SQN30.111A2700 – Actuator, 90°/4.5s, 1Nm, 1 relay, 2 auxiliary switches, AC230V
• SQN30.121A2700 – Actuator, 90°/4.5s, 1Nm, 2 relays, 1 auxiliary switch, AC230V
• SQN30.401A2700 – Actuator, 90°/30s, 3Nm, 3 auxiliary switches, AC230V
• SQN30.402A2700 – Actuator, 90°/30s, 3Nm, 3 auxiliary switches, AC230V
• SQN31.101A2700 – Actuator, 90°/4.5s, 1Nm, 3 auxiliary switches, AC230V
• SQN31.121A2700 – Actuator, 90°/4.5s, 1Nm, 2 relays, 1 auxiliary switch, AC230V
• SQN31.151A2700 – Actuator, 90°/4.5s, 1Nm, 2 relays, 1 auxiliary switch, AC230V
• SQN31.221A2700 – Actuator, 90°/12s, 1.8Nm, 2 relays, 1 auxiliary switch, AC230V
• SQN31.251A2700 – Actuator, 90°/12s, 1.8Nm, 2 relays, 1 auxiliary switch, AC230V
• SQN31.401A2700 – Actuator, 90°/30s, 3Nm, 3 auxiliary switches, AC230V
• SQN31.411A2700 – Actuator, 90°/30s, 3Nm, 1 relay, 2 auxiliary switches, AC230V
• SQN31.111A2700 – Actuator, 90°/4.5s, 1Nm, 1 relay, 2 auxiliary switches, AC230V
• SQN70.244A20 – Actuator, 90°/4 s, 1.5Nm, 2 auxiliary switches, 3 relays, housing 117mm, AC230V
• SQN70.424A20 – Actuator, 90°/12s, 2.5Nm, 2 auxiliary switches, 2 relays, housing 117mm, AC230V
• SQN70.464A23 – Actuator, 90°/12s, 2.5Nm, 2 auxiliary switches, housing 80mm, AC230V
• SQN70.664A20 – Actuator, 90°/30s, 2.5Nm, 2 auxiliary switches, housing 80mm, AC230V
• SQN70.664A23 – Actuator, 90°/30s, 2.5Nm, 2 auxiliary switches, housing 80mm, AC230V
• SQN72.6C4A21 – SQN72.6C4A21 Actuator

Damper actuators accessories

• AGA56.. – Electronic function modules, for SQM5
• ASZ22.803 – Double potentiometer, conductive plastic, 90°, 2×1000Ω
• ASZ12.703 – Single potentiometer, wire, 90°, 1000Ω
• ASZ12.803 – Single potentiometer, conductive plastic, 90°, 1000Ω
• AGA32 – Conversion kit, for retrofitting potentiometer ASZxx.7xx/ASZxx.8xx to SQN3/4
• AGA33 – Service kit, for ASZxx.7xx/ASZxx.8xx, for use with SQM/SQN
• AGA34 – Cover, to retrofit potentiometer ASZxx3x to SQN70/SQN71
• AGA45.11 – Replacement kit connecting plate, NPT conduit connections SQM40/SQM41
• AGA45.6 – Replacement kit connector, for cam versions of SQM40/SQM41
• AGA45.4 – Replacement kit connector, for electronic version of SQM40/SQM41
• AGA45.12 – Replacement kit adapter plate, NPT conduit connections SQM40/SQM41
• AGA70.3 – Mounting kit, for SQN70/71, as a replacement for SQN3
• AGA57.1 – Spacer, adapter for SQM10/SQM20
• AGA57.2 – Adapter, for ME8
• AGA57.3 – Adapter, for Honeywell actuator Mod. 3
• AGA55.5 – Nema 4-kit, for SQM5, doule-sided drive shaft seal
• AGA09 – Potentiometer fixing ASZxx.7xx/ASZxx.8xx, for SQN9
• ASK33.9 – Mounting kit, to fit SQM5 on VKF41…C (only with AGA58.1)
• ASK33.4 – Mounting kit, to fit SQM45/SQM33 on VKF41…C
• AGA58.1 – Drive shaft, 10mm dia, one-sided, Woodruff key, max. 10Nm
• AGA58.7 – Drive shaft, 14mm dia, one-sided, key, max. 40Nm
• AGA58.4 – Drive shaft, ø9.5mm, double-sided, (Honeywell), max. 30 Nm
• AGA58.3 – Drive shaft, ø9mm, double-sided, max. 25Nm
• AGA58.2 – Drive shaft, 12mm dia, one-sided, Woodruff key, max. 20Nm
• AGA56.1A97 – Electronic function module, for SQM5, manual control
• AGA56.41A27 – Electronic function module, for SQM5, analog control 4…20mA, AC230V
• AGA56.43A27 – Electronic function module, for SQM5, analog control DC0…10V, AC230V
• AGA56.9A27 – Electronic function module, for SQM5, fully electronic, AC230V
• SQM50.482A2
