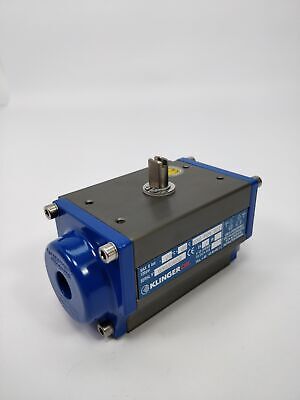

Klinger Actuator valve AP100, AP100DA Klinger
EN AW 6063 T6 extruded Aluminium Body, inside surface
finish Ra=0,4-0,6. 50 micron Hard Anodizing.
EN AB 46100 T6 die-casted Aluminium alloy Pistons, 15
micron Anodizing.
EN AB 46100 T6 die-casted Aluminium alloy Covers, painted
with 60-80 micron polyester powder.
Carbon steel Shaft, 20 micron nickel-plated. Optional in Stainless
Steel AISI 316 (A4).
Screws in Stainless Steel AISI 304 (A2).
Seals in nitrile nubber NBR. Optional HIGH Temperature = FPM/FKM. Optional LOW Temperature = SILICONE.
Bearings in low friction acetal resin LAT-LUB, easily replaceable for maintenance. Optional HIGH/LOW Temperature = PA 66.
Pre-compressed Spring Cartridges, easily replaceable for maintenance, 60-80 micron polyester painted.
Standard grease: High performances Syntetic Grease. Optional: special grease for HIGH/LOW Temperature.
Several special protections available for chemical, pharmaceutical, food and industrial environments.
• Double lower drilling for valve fastening and centering, according to ISO 5211-DIN 3337 Standards.
• Double square lower female shaft key (starlike), according to ISO 5211-DIN 3337 Standards for assembly on valves with
square key on line (0°) and diagonal key (45°).
• Solenoid connections according to NAMUR VDIVDE-3845 Standards.
• Top drilling for accessories fastening, and upper shaft end according to NAMUR VDIVDE-3845 Standards.
• Position indicator on request, enabling switch-box assembly on top.
• Aluminium adhesive nameplates, with progressive serial number punched.
• Lubrification carried out by the manufacturer, guaranteed for min. 1.000.000 operations.
• Running test and 100% seal test carried out with electronic equipment and certification of each individual product.
• Standard execution for temperatures from –20°C to +80°C (optional, special execution for extreme temperatures).
• Conformity for use in explosive environnement; certification for STANDARD versioned actuators = II 2GD c Tmax 95°C.
• According to EN 15714-3 design and manufacture standard requirements.
