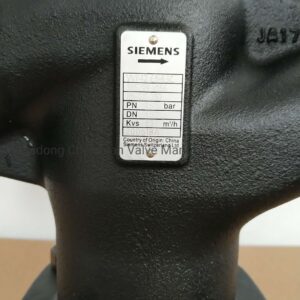

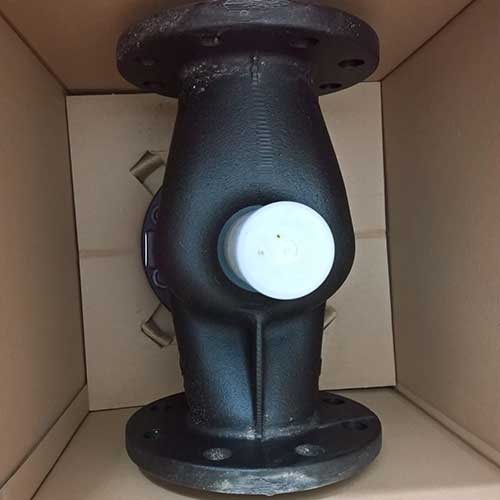

Siemens VVF42.40 – 2 port flanged valves PN16 DN40
- With flanged connections to ISO 7005
- For chilled, low and high temperature water and brine in closed circuits
VVF42.40-16C 2-port valve, flanged, PN16, DN40, kvs 16
- Type VVF42.40-16C
- Part No S55204-V151
- DN 40
- kvs 16m³/h
- Material valve body: Cast iron EN-GJL-250
- Material inside set : ≤ DN 25: CrNi steel / brass , ≥ DN 32: CrNi steel / CrNi steel
- PN class PN 16
VVF42.40-25C 2-port valve flanged PN16 DN40 kvs 25
- Type VVF42.40-25C
- Part No S55204-V152
- DN 40
- kvs 25m³/h
- Material valve body: Cast iron EN-GJL-250
- Material inside set : ≤ DN 25: CrNi steel / brass , ≥ DN 32: CrNi steel / CrNi steel
- PN class PN 16
Compatible actuators
SKB60Electrohydraulic actuator, 2800 N, 20 mm, AC 24 V, DC 0…10 V/4…20 mA
- Overload-proof through travel-dependent, electronic switching off in end position. With die-cast aluminium housing and yoke for valves with 20 mm stroke. Optional function with one auxiliary switch. With manual control.
Additional info
- SKB..U, SKB..UA are UL listed. Control devices MK..6.. are control devices with safety shut-off function per DIN EN 14597
- Product No.:SKB60
- Stock No.: BPZ SKB60
- Warranty 60 Months
SKD Electrohydraulic actuators 1000N
- SKD32.21 – Electrohydraulic actuator, 1000 N, 20 mm, AC 230 V, 3P, spring return
- SKD32.50 – Electrohydraulic actuator, 1000 N, 20 mm, AC 230 V, 3P
- SKD32.51 – Electrohydraulic actuator, 1000 N, 20 mm, AC 230 V, 3P, spring return
- SKD82.50 – Electrohydraulic actuator, 1000 N, 20 mm, AC 24 V, 3P
- SKD82.51 – Electrohydraulic actuator, 1000 N, 20 mm, AC 24 V, 3P, spring return
- SKD60 – Electrohydraulic actuator, 1000 N, 20 mm, AC 24 V, DC 0…10/V 4…20 mA
- SKD62 – Electrohydraulic actuator, 1000 N, 20 mm, AC 24 V, DC 0…10 V/4…20 mA, spring return
SKB Electrohydraulic actuators 2800 N
- SKB32.50 – Electrohydraulic actuator, 2800 N, 20 mm, AC 230 V, 3P
- SKB32.51 – Electrohydraulic actuator, 2800 N, 20 mm, AC 230 V, 3P, spring return
- SKB82.50 – Electrohydraulic actuator, 2800 N, 20 mm, AC 24 V, 3P
- SKB82.51 – Electrohydraulic actuator, 2800 N, 20 mm, AC 24 V, 3P, spring return
- SKB60 – Electrohydraulic actuator, 2800 N, 20 mm, AC 24 V, DC 0…10 V/4…20 mA
- SKB62 – Electrohydraulic actuator, 2800 N, 20 mm, AC 24 V, DC 0…10 V/4…20 mA, spring return
SKC Electrohydraulic actuators 2800 N
- SKC32.60 – Electrohydraulic actuator, 2800 N, 40 mm, AC 230 V, 3P
- SKC32.61 – Electrohydraulic actuator, 2800 N, 40 mm, AC 230 V, 3P, spring return
- SKC82.60 – Electrohydraulic actuator, 2800 N, 40 mm, AC 24 V, 3P
- SKC82.61 – Electrohydraulic actuator, 2800 N, 40 mm, AC 24 V, 3P, spring return
- SKC60 – Electrohydraulic actuator, 2800 N, 40 mm, AC 24 V, DC 0…10 V/4…20 mA
- SKC62 – Electrohydraulic actuator, 2800 N, 40 mm, AC 24 V, DC 0…10 V/4…20 mA, spring return
- SKC62U – Electrohydraulic actuator, 2800 N, 40 mm, AC 24 V, DC 0…10 V/4…20 mA, spring return, UL
- SKC62UA – Electrohydraulic actuator, 2800 N, 40 mm, AC 24 V, DC 0…10 V/4…20 mA, spring return, UL
