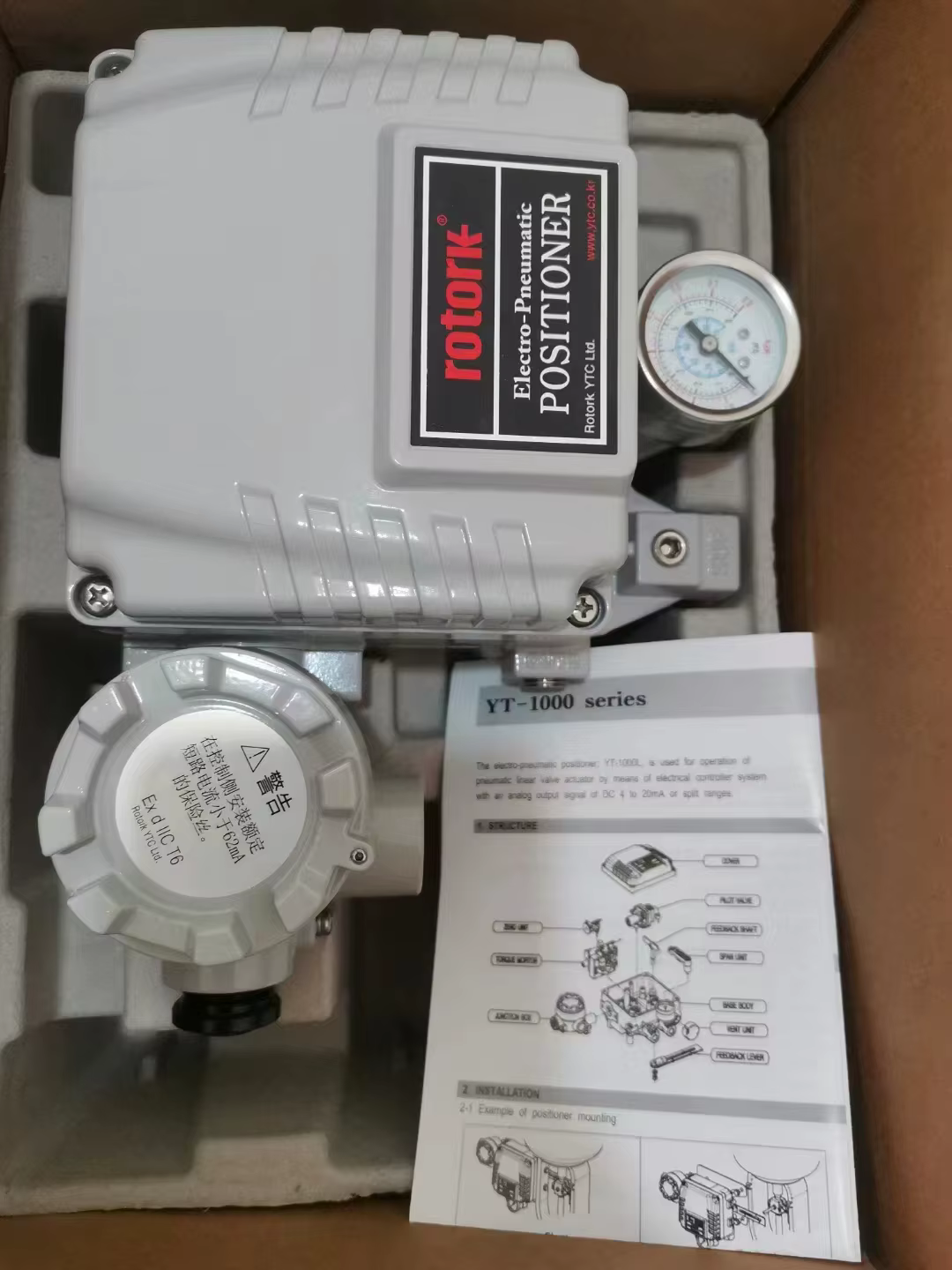

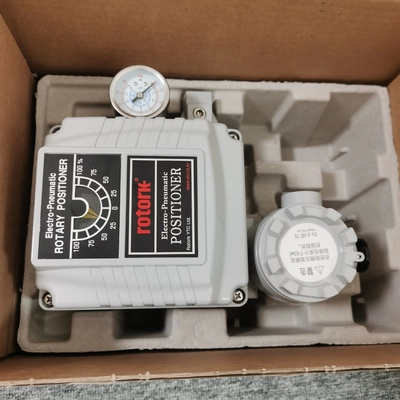

Positioner YT-1000LDN232S00 pneumatic electric positioner is used for the operation of pneumatic rotary actuator by electric controller or control system with 4 to 20mA DC or analog output signal share.
- Simple zero and span adjustment.
- No resonance between 5-200Hz.
- Auto/Manual switch.
- RA v.s. DA action and 1/2 split range setting by simple adjustment.
- Internal feedback signal is available as an option (weather proof only).
Design features
• Simple zero and span adjustment. Internal hand dials and locking screws for 4-20 mA range adjustments.
• Reverse and direct acting settings. Full and 1/2 split range setting by simple adjustment.
• High vibration resistant. No resonance between 5 to 200 Hz.
• Internal feedback option. Available on weatherproof model only.
• Auto / manual switch. Internal adjustment with lock screw safety.
Models

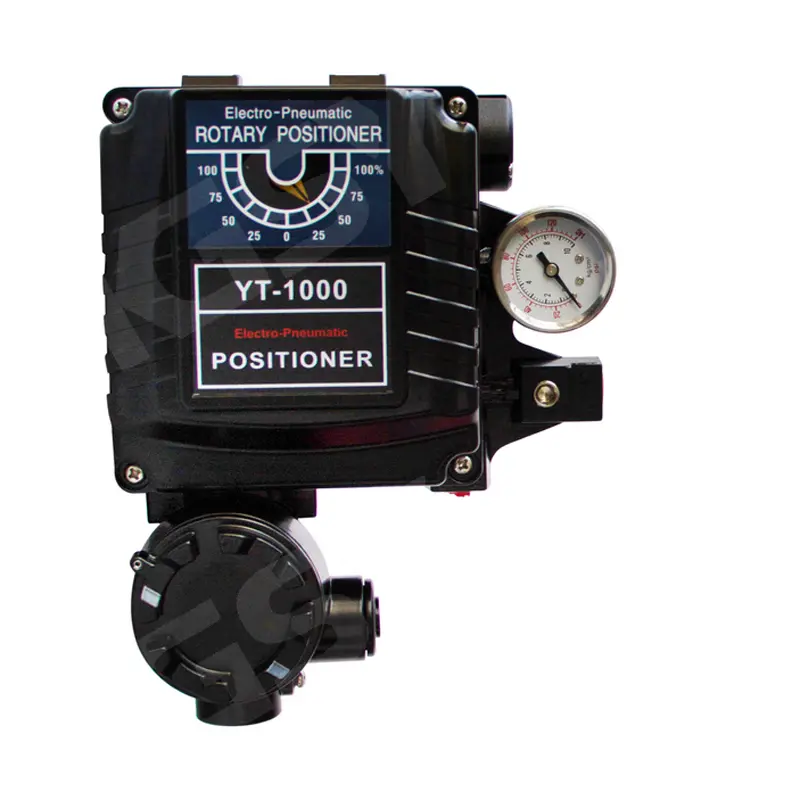

YT-1000 = Aluminium
YT-1050 = STS316 *pictured*
